LAiV Crescendo BEAT - PREORDER!
LAiV Crescendo BEAT - PREORDER!
Silver
Sound Kitchen
Samuel Soesmanstraat 52
3015 GL Rotterdam
Netherlands
Shipping – NL: 2-3 business days, rest of EU: 3–5 days WHEN IN STOCK
Choose options
Shipping – NL: 2-3 business days, rest of EU: 3–5 days WHEN IN STOCK
Shipping – NL: 2-3 business days, rest of EU: 3–5 days WHEN IN STOCK
The Crescendo BEAT is a linear power supply designed to deliver clean, stable DC power to two audio components simultaneously. It outputs 15V at 2A and 5V at 3A on separate rails, both active at the same time, making it ideal for powering streamers, DACs, and digital converters. Built with a 70VA toroidal transformer, Schottky rectification, two-stage linear regulation per rail, and nearly 18,000µF of filter capacitance, the BEAT achieves exceptional noise performance of ≤10µVrms at no load and ≤50µVrms at full load, with ripple rejection exceeding 82dB. Comprehensive protection circuits guard against over-current, over-voltage, over-temperature, and short-circuit conditions.
PREORDER TODAY! Ships in October.
| Specifications | |
|---|---|
| Output Voltage & Current | 15V at 2A and 5V at 3A, both active simultaneously |
| Output Noise | ≤ 10 µVrms no load / ≤ 50 µVrms full load |
| Ripple Rejection | > 82 dB |
| Transformer | 70 VA toroidal, single core |
| Rectification | Schottky diodes |
| Filter Capacitance | 17,990 µF total |
| Regulation | Two-stage linear regulation per rail |

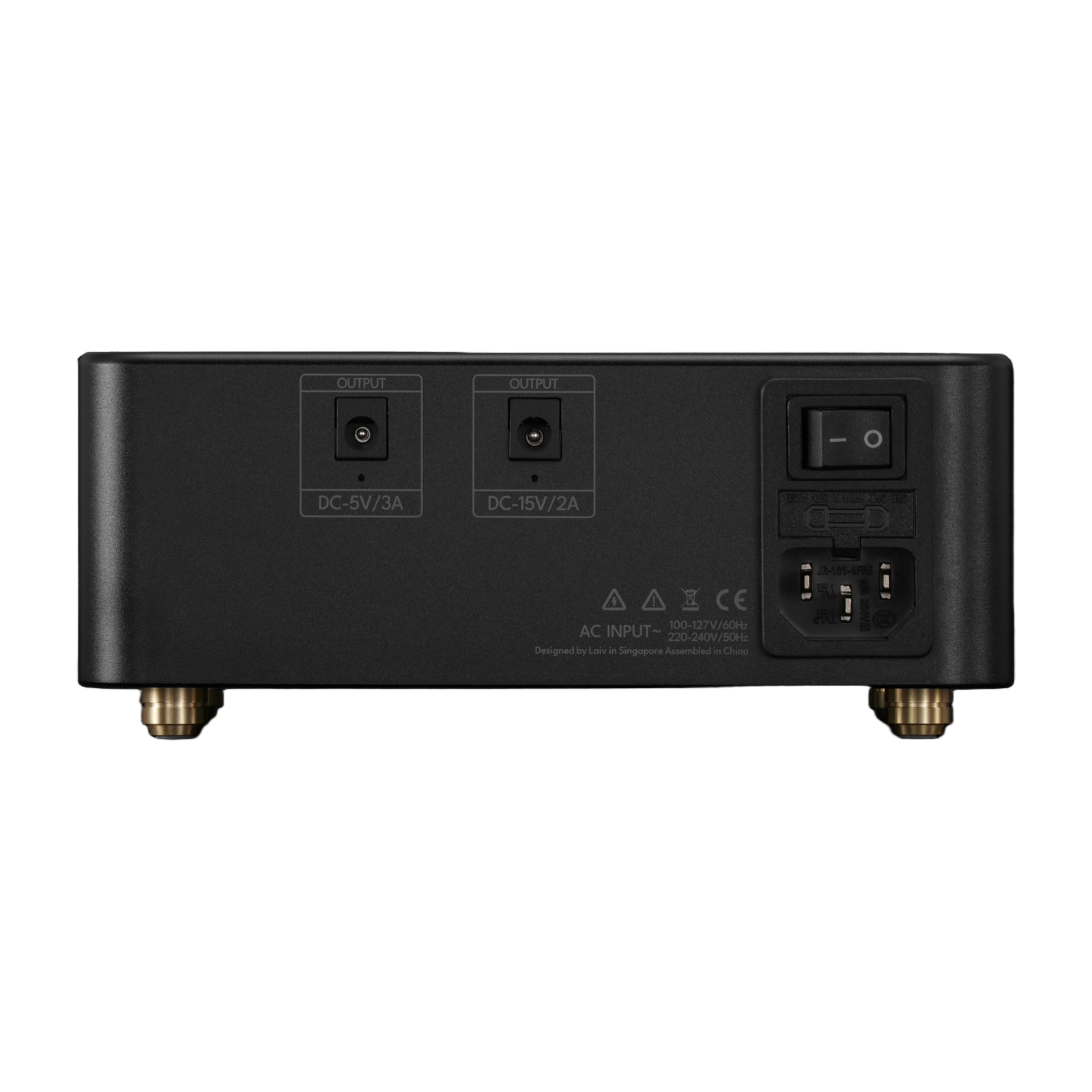

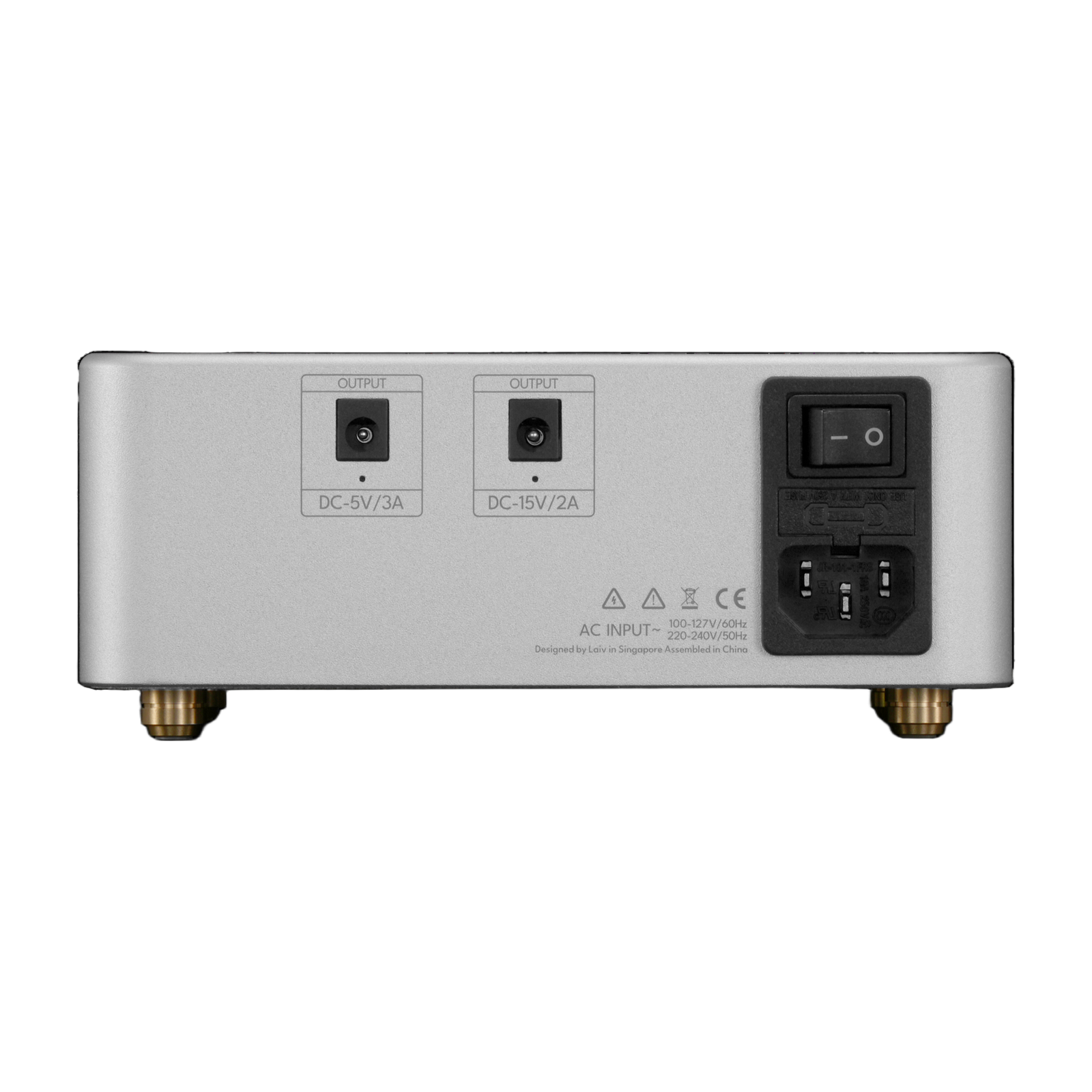

| Output Connectors | DC barrel 5.5/2.1mm (5V), 5.5/2.5mm (15V) |
| Protection | Over-current, over-voltage, over-temperature, short-circuit |
| Mains Input | 100-127V / 220-240V selectable, 50/60Hz, IEC C14, T2A fuse |
| Switching Frequency | 0 Hz |
| Idle Power | 1.3 W at 230V |
| Dimensions | 168 × 167 × 70 mm |
| Weight | 2.33 kg |
| Chassis | Aluminium, fanless, Black or Silver |
| Warranty | 2 years |
| Included Cables | 2 × DC cables (50cm), DC5521 to DC5521 cable, DC5525 to DC5525 cable |
