LAiV Crescendo Verse

€929,00 EUR
Available to order - contact us for delivery estimate
Color:Black
Quantity:
Pickup available at Sound Kitchen Usually ready in 1 hour

LAiV Crescendo Verse

Black

Sound Kitchen

Pickup available, usually ready in 1 hour

Samuel Soesmanstraat 52
3015 GL Rotterdam
Netherlands

+31103107945

LAiV Crescendo VERSE — Tech Specs

Finish

  • Black & Gold anodised aluminium; tempered glass
  • Silver & Gold anodised aluminium; tempered glass

Size and Weight

  • Weight: 0.9 kg

Display

  • 20×7 dot-matrix LED display

Front and Rear

  • Power button: short press to power on / display off; long press to standby
  • Menu button: press to settings / return
  • Enter button: press to confirm / mute
  • Rotating dial: rotate to control volume / settings

Chip

  • Intel® Altera® Cyclone® FPGA

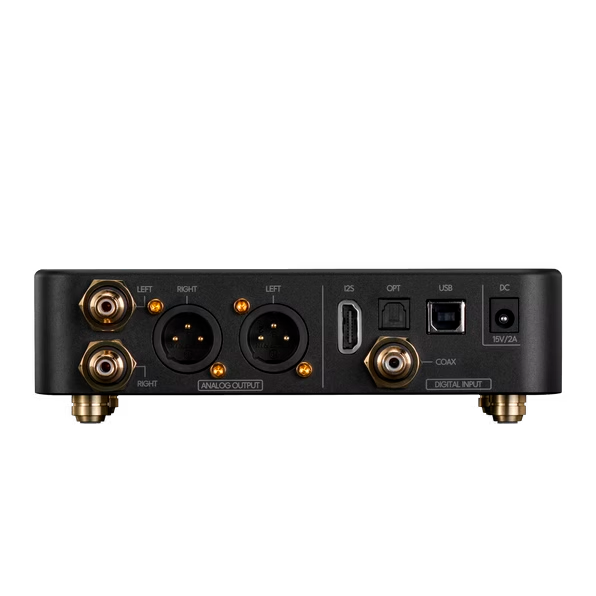

Digital Inputs

  • 1 × USB
  • 1 × Optical
  • 1 × Coaxial
  • 1 × I2S

Supported Formats (Input dependent)

Input PCM DSD
USB 44.1 kHz – 768 kHz DSD64 – DSD256
Optical 44.1 kHz – 192 kHz DSD64 via DoP only
Coaxial 44.1 kHz – 192 kHz DSD64 via DoP only
I2S 44.1 kHz – 768 kHz DSD64 – DSD256

Digital Playback Control

Supports native DSD 1-bit processing and an integrated sampling rate converter, giving users full control over PCM and DSD playback behavior.

Resampling Options

  • PCM: 1×, 2×, 4×, 8×, 16× (up to 768 kHz / 705.6 kHz)
  • DSD: DSD64, DSD128, DSD256, DSD512 (Only available in DSD native mode)
Note: In DSD Native mode, a brief popping sound may occur when switching between PCM/DSD or DSD tracks with different rates. For mixed sampling rate playback, DSD Multibit mode is recommended.

Preamp Outputs

Output Level Output Impedance
1 × XLR approx. 4 Vrms 82 Ω
1 × RCA approx. 2 Vrms 41 Ω

Headphone Outputs

Output Level Output Impedance
1 × Balanced 4.4 mm jack approx. 11 Vrms 5.1 Ω
1 × Single Ended 6.35 mm jack approx. 5.5 Vrms 2.6 Ω

Gain

  • Selectable headphone output gain: LOW / MED / HIGH

Performance

Spec Value
Output Power ≤ 1100 mW (Balanced 4.4 mm) ≤ 290 mW (Single Ended 6.35 mm)
Frequency Response 20 Hz – 80 kHz, ± 3 dB
THD+N 0.0045% (Preamp) 0.008% (Headphone amplifier)
Crosstalk ≤ -100 dB (Preamp Balanced) ≤ -100 dB (Preamp Single Ended) ≤ -100 dB (Headphone Balanced) ≤ -60 dB (Headphone Single Ended)
Signal to Noise Ratio (SNR) ≥ 120 dB (Preamp Balanced) ≥ 110 dB (Preamp Single Ended) ≥ 110 dB (Headphone Balanced) ≥ 100 dB (Headphone Single Ended)
Noise ≤ 25 µVrms (Preamp Balanced) ≤ 72 mVrms (Preamp Single Ended) ≤ 30 µVrms (Headphone Balanced) ≤ 65 µVrms (Headphone Single Ended)

Features

  • Sleek & compact design
  • LAiV R2R ladder network architecture
  • Native DSD 1-bit conversion
  • NOS / SRC mode
  • Sampling rate converter
  • Positive / negative phase
  • Display brightness, delay dim, and delay off
  • 8 × I2S mode with LAiV product auto-configured
  • I2S clock supported
  • Discrete output buffered preamplifier
  • Discrete headphone amplifier with gain selector
  • Headphone output protections

Controls

  • Front panel
  • Remote control

Power

  • 15 VDC / 2A, DC 5.5/2.5 mm female

In the Box

  • Welcome card with Quick Start guide
  • Crescendo VERSE
  • Remote control
  • Power adapter with interchangeable plugs

Warranty

  • 24-month limited warranty

Notes

  1. Colours vary by configuration and manufacturing process.
  2. Size and weight vary by configuration and manufacturing process.
  3. Specification evaluated using an Audio Precision APx Analyzer under PCM 192 kHz with 1 kHz, A-weighted, USB input, balanced XLR preamp output; headphone output high gain into 32 Ω at maximum volume, A-weighted conditions.
  4. See manufacturer warranty policy for details.
