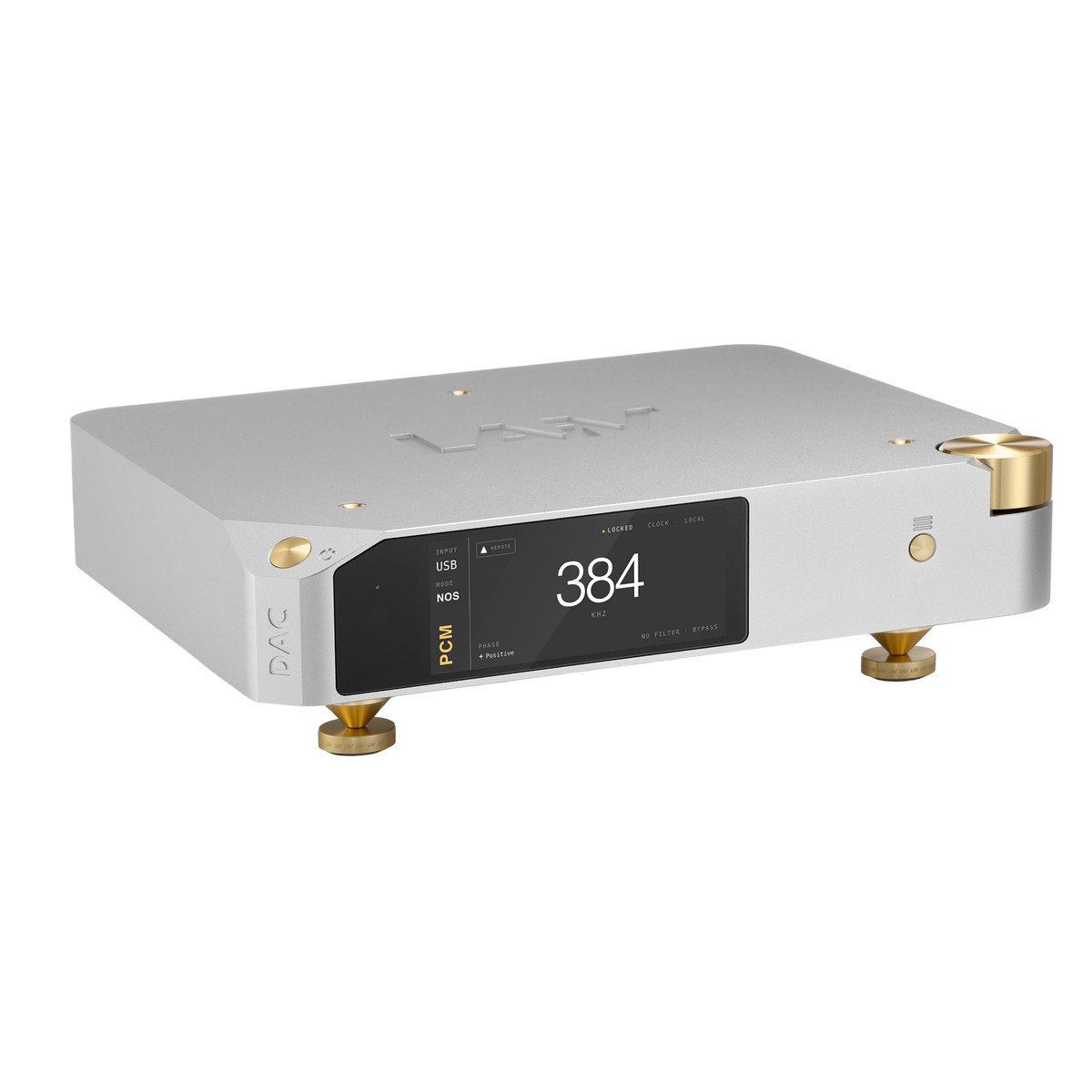

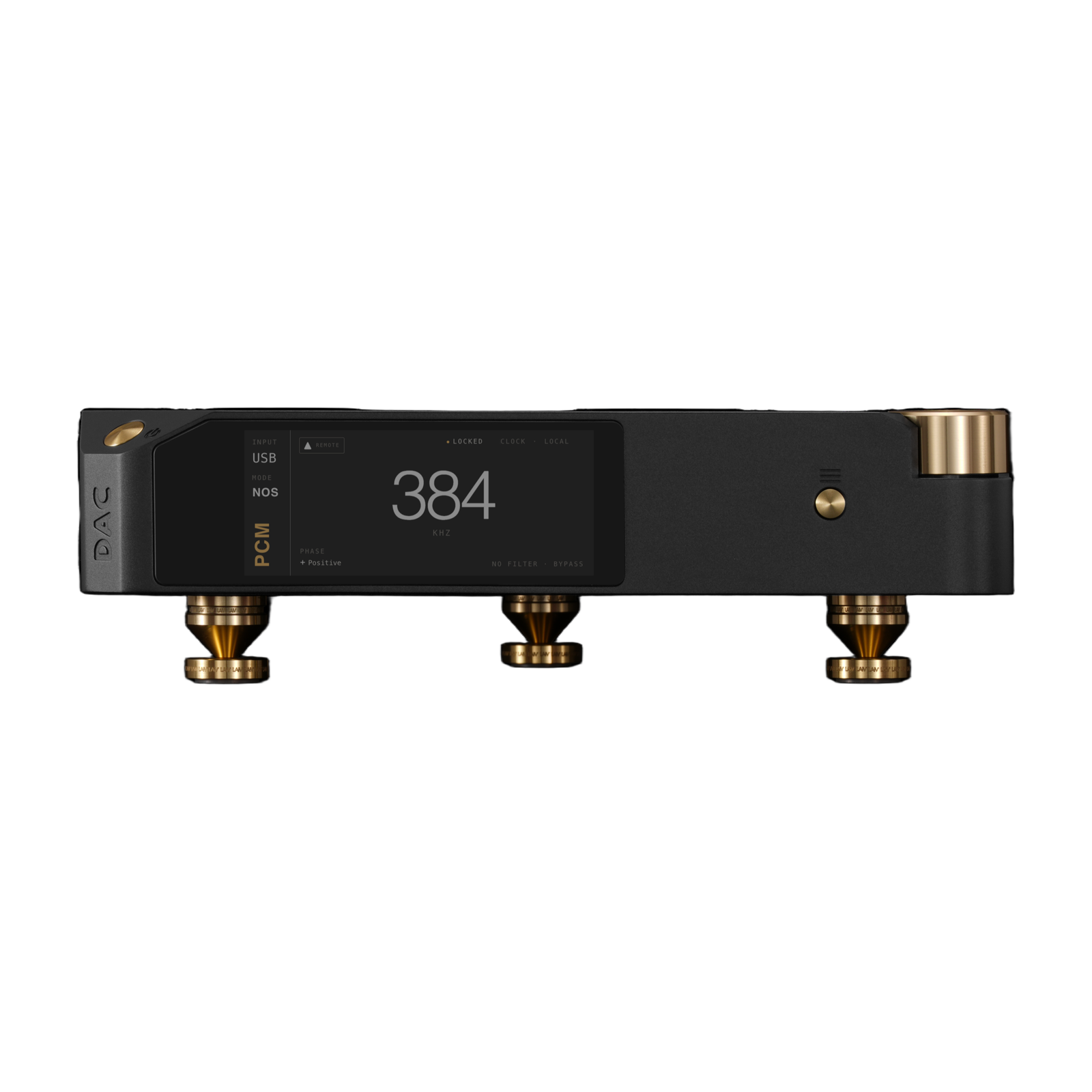

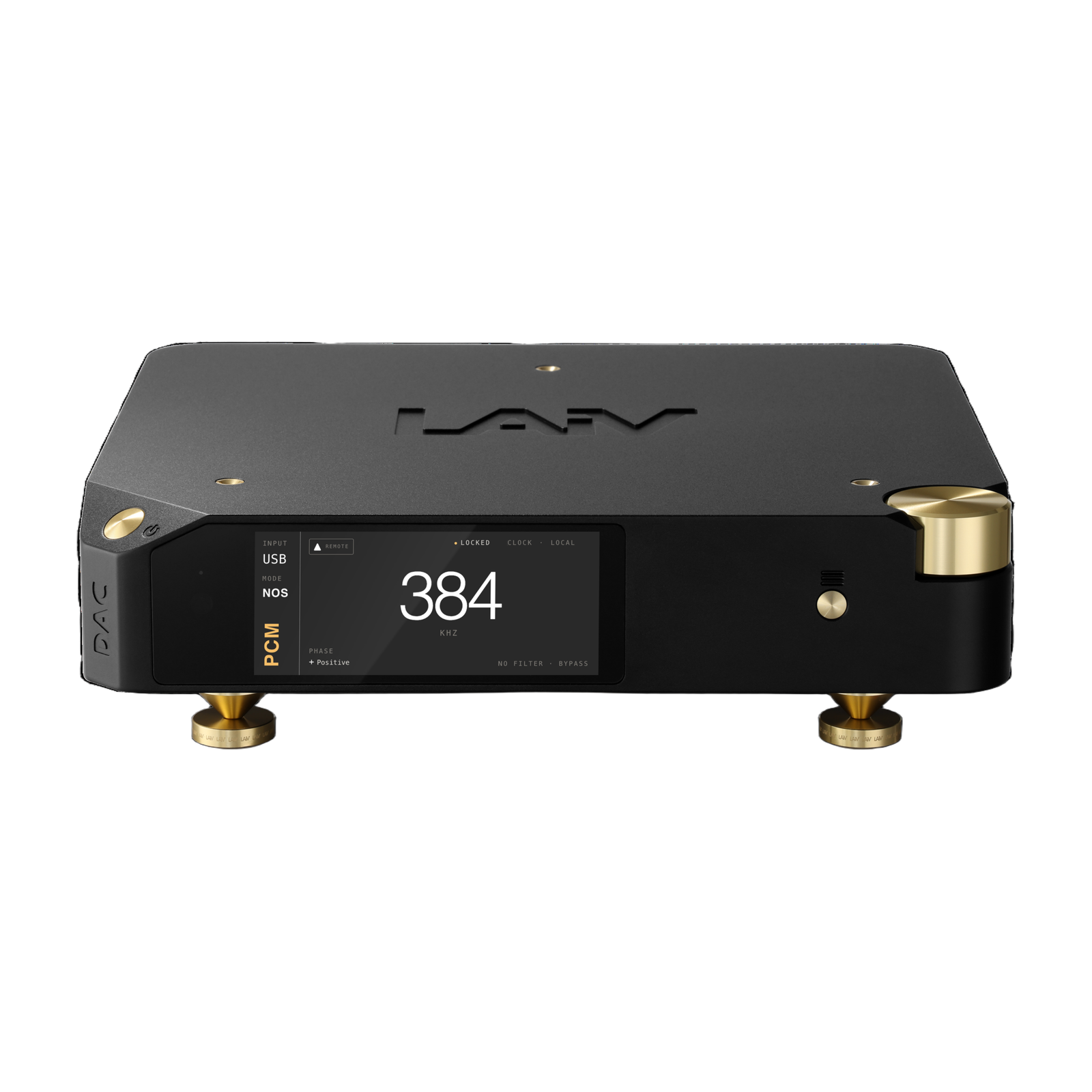

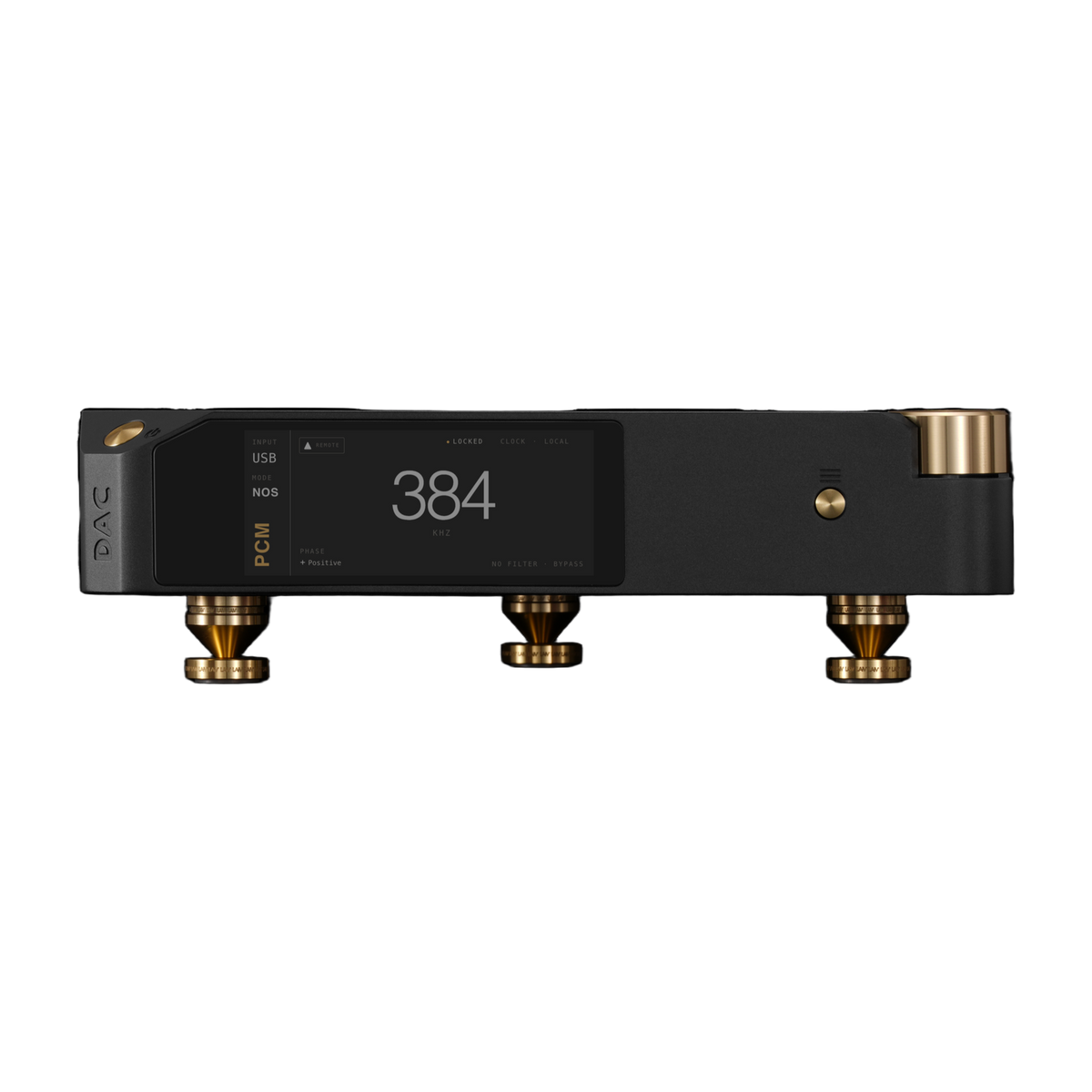

The LAiV Harmony DAC 2 is a fully balanced discrete R2R ladder digital-to-analog converter designed for audiophiles who prioritize organic, natural sound reproduction. This unit features dual concurrent XLR and RCA outputs driven by a new discrete Class A buffer, direct 10MHz external master clock input, three selectable PCM conversion modes (NOS, OS, and hardware SRC), and full digital isolation between input and output stages. The 960×400 colour display, 12V trigger for system integration, and USB-C firmware updates round out a refined architecture that builds on the original Harmony DAC's core while addressing modern connectivity and usability demands.
PREORDER TODAY! Ships in October.
| Specifications | |
|---|---|
| Conversion Architecture | Fully balanced discrete precision-matched R2R ladder |
| PCM Modes | NOS / in-house OS / hardware SRC |
| DSD Handling | NOS; converted directly to multi-bit for the R2R ladder (no oversampling or sample rate conversion) |
| Output Buffer | Discrete Class A, low output impedance |

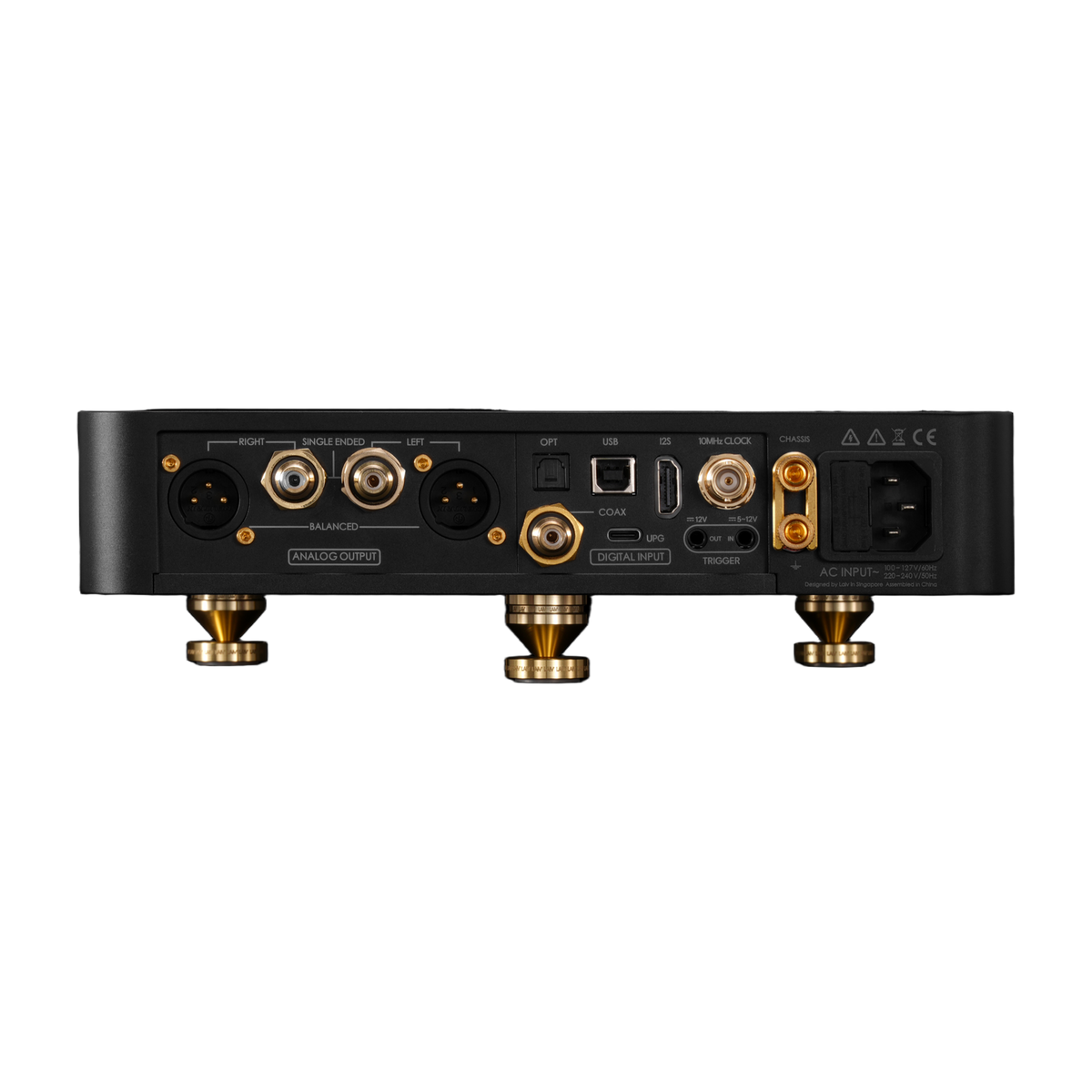

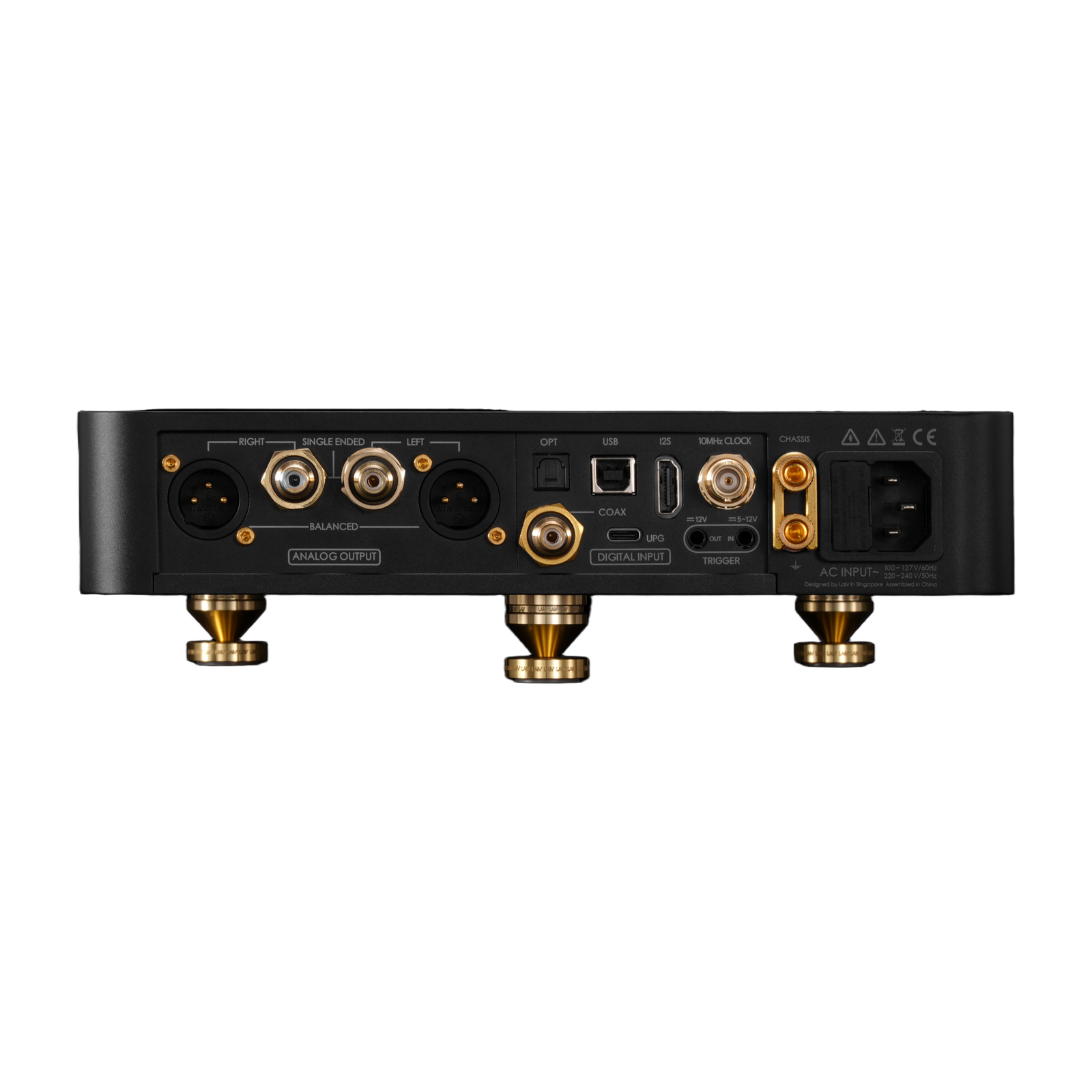

| Analogue Outputs | XLR and RCA, concurrent use supported |
| Digital Inputs | USB, Optical, Coaxial, I2S, 10MHz master clock input |
| USB / I2S Max Rates | PCM 768kHz, DSD256 |
| Optical / Coaxial Max Rates | PCM 192kHz, DSD64 (DoP) |
| 10MHz Clock Input | BNC, 50 Ω, 0.5–3.3V |
| Output Voltage / Impedance | XLR 4.15Vrms <50Ω, RCA 2.08Vrms <25Ω |
| THD+N / SNR | 0.0035% / >125dB |
| Dynamic Range / Crosstalk | >110dB / <−120dB |
| Frequency Response | 20Hz–20kHz ±0.25dB |
| Digital Isolation | Full digital isolation between input and output stages |
| Trigger | 12V trigger, in and out, power on/off |
| Display | 960 × 400 TFT colour LCD |
| Firmware Updates | USB-C |
| Digital Engine / Clock | Intel Cyclone FPGA, CCHD-957 femto clock |
| Power Consumption | 14.7W operating, 2.5W standby |
| Power Requirements | 100–127 VAC / 220–240 VAC, 50/60Hz |
| Dimensions | 255 × 250 × 50mm (75mm with spikes) |
| Remote Control | Harmony RCX, included |
| In the Box | Welcome card with Certificate of Authenticity, three spike shoes with alignment card, remote control (CR2032 battery not included), power cord, cleaning cloth |
