LAIV Harmony µDAC: Balanced R2R DAC
The LAIV Harmiony µDAC is based on the same digital-to-analog conversion circuit as its big brother, namely a discrete balanced R2R circuit designed from audiophile components for precise signal processing. It supports high-definition sampling rates up to PCM 32bit 768kHz and DSD256. Each resistor in the circuit, with a tolerance of 0.05%, is carefully arranged to deliver superior, faithful and immersive sound quality.
LAIV Harmony µDAC: Clock optimization
The µDAC is based on an Accusilicon AS318 femtosecond oscillator with very low phase noise, guaranteeing uncompromising performance. In addition, an I2S port via HDMI allows integration of an external master clock for even greater performance. This flexible system will be particularly appreciated by the most demanding audiophiles.
LAIV Harmony µDAC: Discrete class A output buffer
The LAIV Harmony µDAC's Class A output buffer uses discrete components for precise impedance matching, to avoid signal degradation and ensure optimum transfer to an amplifier. The fact that it's in Class A ensures constant linearity and low noise, for the smooth, warm sound performance so highly prized by audiophiles.
LAIV Harmony µDAC: Galvanic isolation
The µDAC's digital and analog circuits are galvanically isolated to avoid ground loops and guarantee a clean, interference-free path for the sound signal.

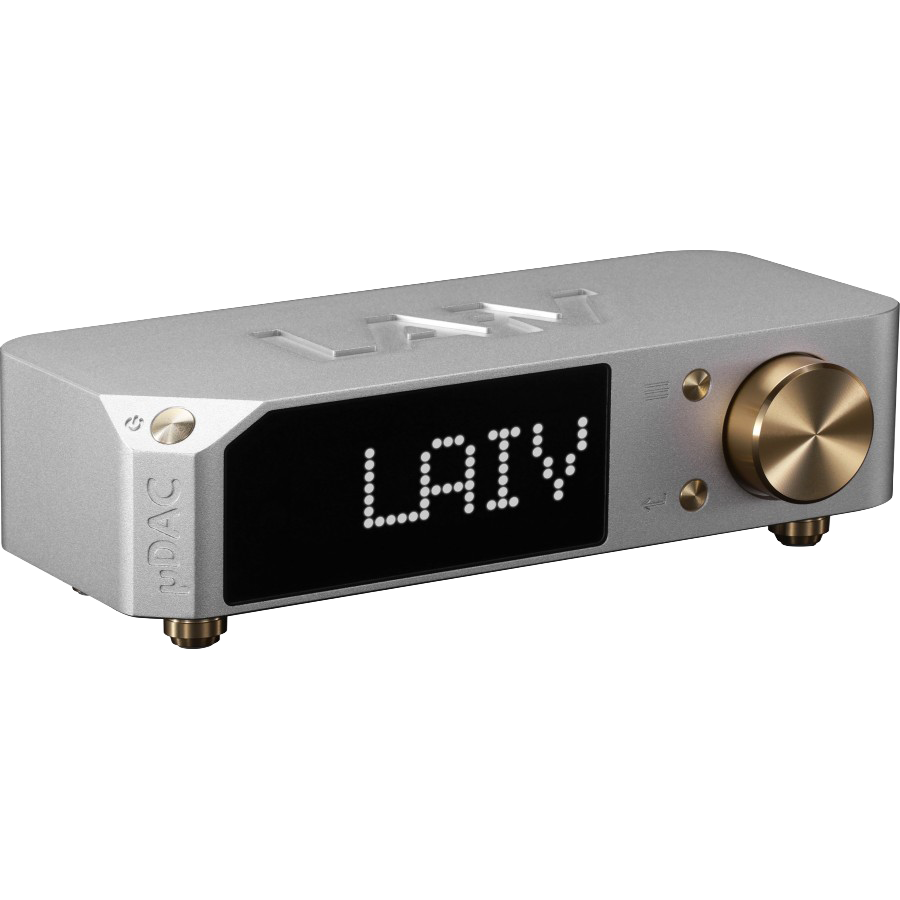

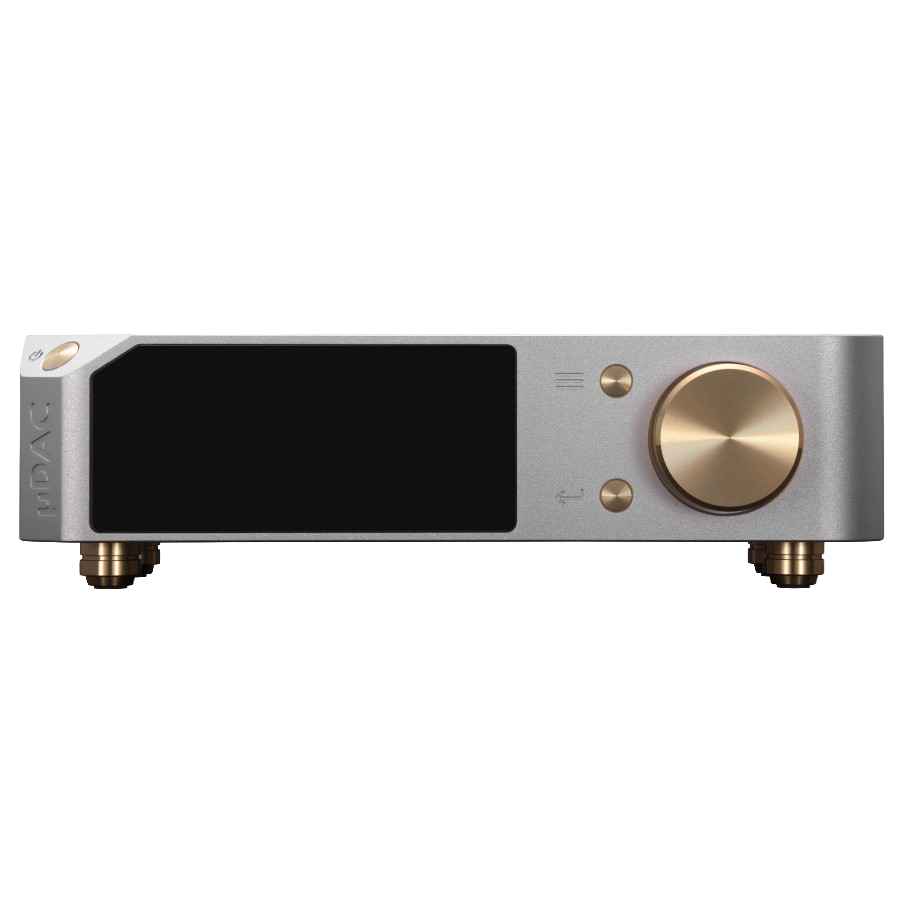

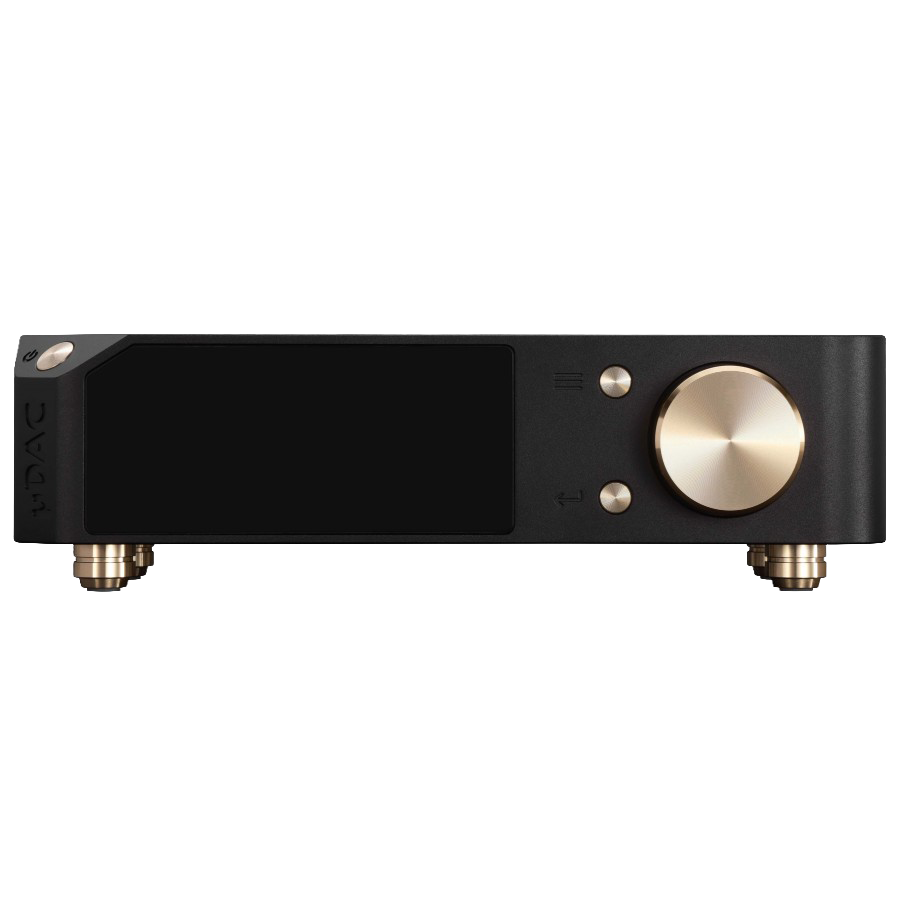

LAIV Harmony µDAC overview
| 1 | Power button |
| 2 | Display |
| 3 | Menu button |
| 4 | Return button |
| 5 | Multifunction button |
| 6 | Balanced XLR output |
| 7 | I2S input via HDMI (accept MCLK clock) |
| 8 | Coaxial input |
| 9 | Toslink optical input |
| 10 | USB-B input |
| 11 | 15V 2A power supply via DC jack |
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Product type | DAC R2R |
| Inputs | 1x USB-B input 1x Coaxial input 1x Toslink optical input 1x I2S input via HDMI |
| Output | 1x Balanced XLR output |
| Processor | Altera Cyclone IV |
| Supported sampling rates | PCM up to 32Bit 768kHz Native DSD up to DSD256 |
| External clock via I2S HDMI | |
| GENERAL | |
|---|---|
| Power supply | 15V 2A via jack DC |
| Package | 1x LAIV Harmony µDAC 1x Power adapter |
