Campfire Audio Relay DAC/amp

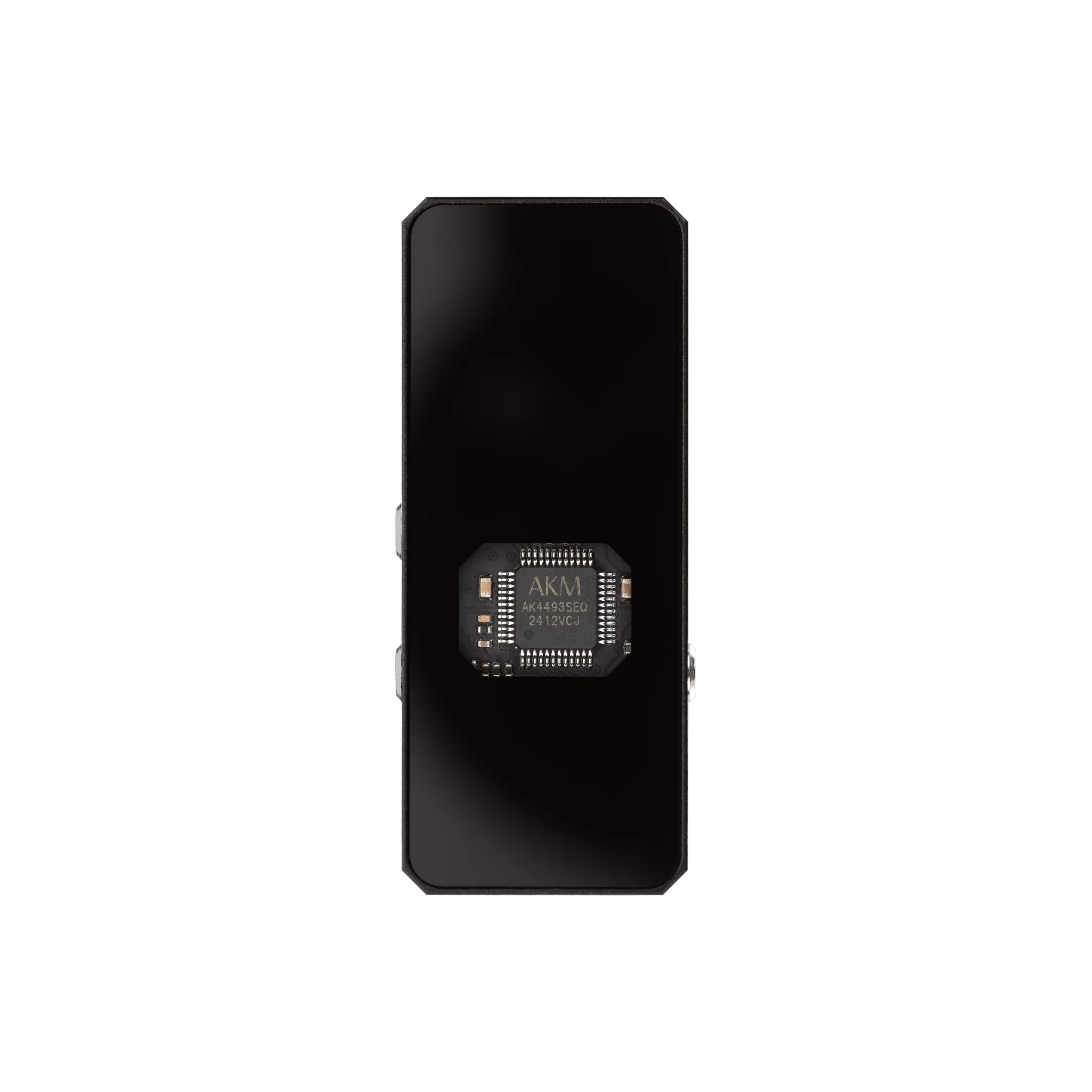

The Campfire Audio Relay features a high-performance DAC chip, the AKM SEQ 4493, unique for its incredible tonality and analog warmth. After extensive testing and sampling of the wide range of DAC chips available, Campfire's R&D team came to appreciate the AKM 4493's performance above the rest. On top of it's incredible sonic performance, and convenient, compact size, Relay allows further refinement of your HiFi sound with six selectable filter modes, Hi/Lo gain settings, and both 3.5 & 4.4mm outputs, PCM and DSD playback, and wide range of compatible bit rates and sampling rates. Rounded out with easy media playback controls, plug-and-play USB-C compatibility, and a lightweight, durable CNC aluminum housing, Relay will effortlessly elevate your listening experience.

Highlights

• AKM SEQ 4493 DAC chip
• Two ultra-low-noise, high-output drivers
• High/Low gain modes
• Six selectable filter modes
• Media playback controls
• 60-step built-in volume controls
• 3.5mm single ended & 4.4mm balanced outputs
• DSD and PCM playback

Specifications

Connection	USB 2.0 Type-C
Output Power
Low Gain	1.35 Vrms (Single-ended) 2.7 Vrms (Balanced)
High Gain	2 Vrms (Single-ended) 4 Vrms (Balanced)
Audio Formats	PCM and DSD Playback
Compatibility	Windows 7*/8*/10/11, Mac OS, Android, iOS *Windows 7/8 require ASIO driver download
Sample Rates	16/24/32Bit 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768kHz
Dimensions	Approx 57mm × 23mm × 10mm

In the Box

• Relay DAC/AMP premium portable hifi solution

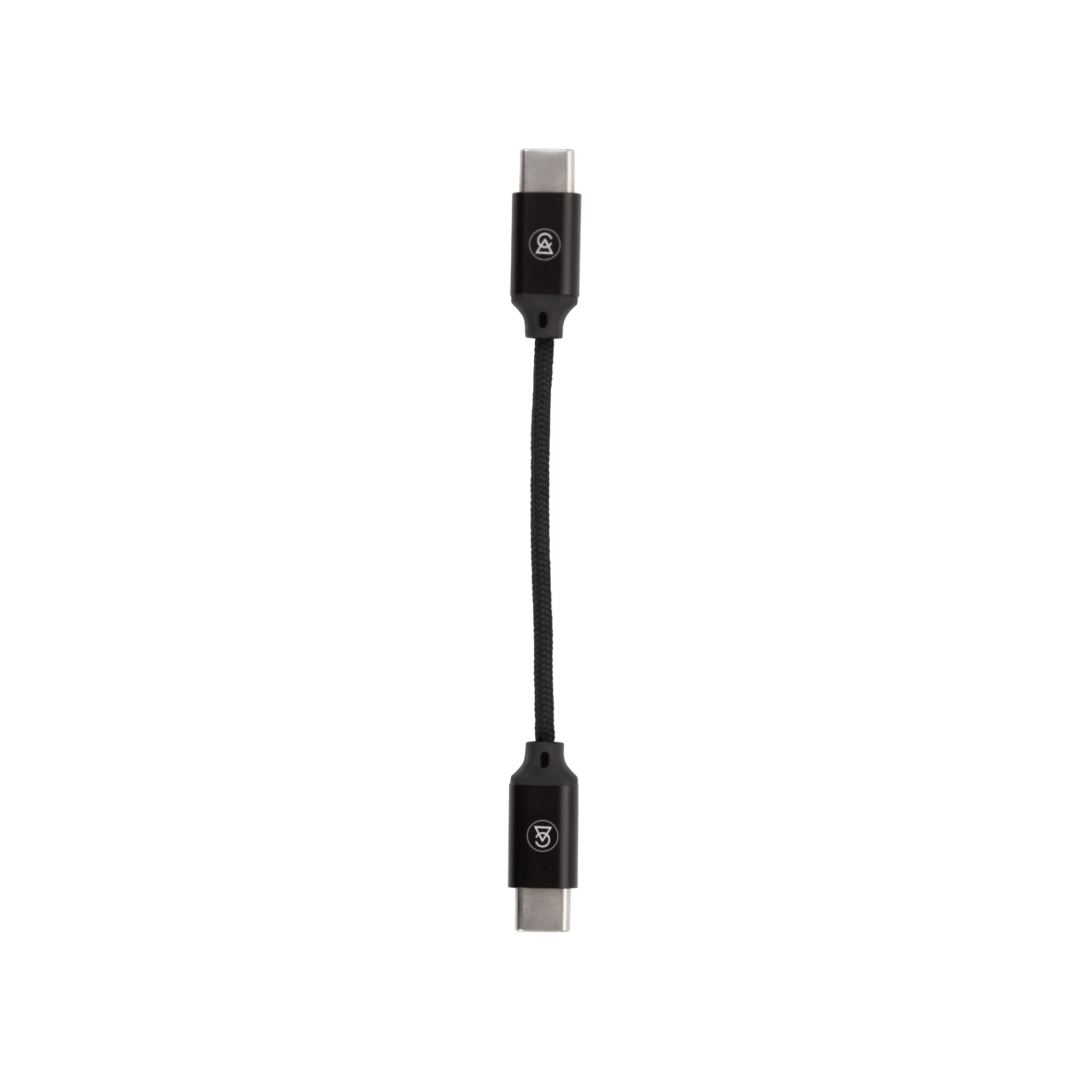

• USB-C to USB-C Cable
• RipStop Cushioned Accessory Bag
• Microfiber Cleaning Cloth
